CAN is a hugely successful fieldbus protocol that’s been around for more than three decades. It’s used today in hundreds of millions of devices including cars, trucks, buses, construction machines, ships, tractors, and spacecraft (there is even a CAN bus orbiting Mars). It has superb features that make it ideal for robust distributed real-time control, such as atomic broadcast. But one major drawback to CAN is that it has no security features and is vulnerable to all kinds of attacks, many that would have been inconceivable when CAN was created in 1986.

Accessing CAN for an attack

The first step to any attack on CAN is accessing the bus. This attack surface can vary from physical access to the wiring and splicing in a device (used today to override emissions controls in trucks) through subverting wireless access points - not just Bluetooth or WiFi but also sensors for TPMS - to hijacking a device connected to CAN (most commonly a car’s infotainment system but ECUs and other control systems can be hijacked too).

Types of attack

There are three properties of a secure system called the ‘CIA Triad’:

• Confidentiality: The message contents are secret
• Integrity: The message is genuine
• Availability: The system will continue to work

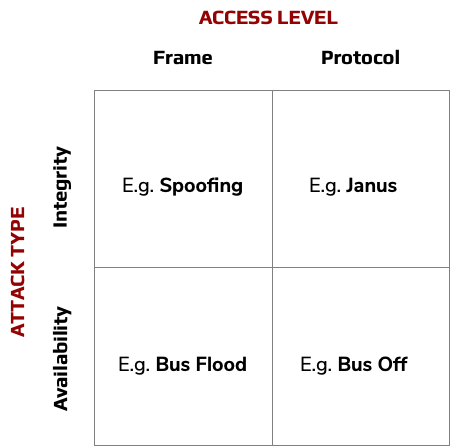

The two key properties for CAN bus security are Integrity and Availability (Confidentiality is less important in an embedded control system). After hacking into a system to get access to CAN, all kinds of attack are possible but attacks can be placed into a simple matrix:

The two specific ways to attack a CAN bus are:

• Frame attacks: use a CAN controller to send valid CAN frames
• Protocol attacks: taking direct control of the CAN signal lines to the CAN transceiver and sending carefully timed pulses

Protocol attacks are far more insidious than frame attacks because they can force the system into unanticipated behaviours but also are less detectable. For example, the Janus attack sends different payloads to different receivers, and simply monitoring the bus will see only one of these.

The Canis Labs CANHack toolkit is a software toolkit that demonstrates different CAN protocol attacks:

• Janus attack
• Frame spoofing (simple, timed and Error Passive variants)
• Error attack
• Double Receive attack
• Freeze Doom Loop attack

The CANHack toolkit is included in the MicroPython SDK for the CANPico board but it is also easy to make a CANHack board from breadboard.

Defending CAN bus

The classic ways to defend CAN bus are broadly:

• Encryption: add an authentication code to each message
• Intrusion Detection: spot traffic anomalies on the bus
• Security gateway: firewall off a risky bus and only forward legitimate traffic

The newest way to protect CAN is with hardware:

• CAN-HG: augment the CAN protocol for integrity and availability

The CAN-HG security protections are transparent to software, and use a central IDPS to monitor the bus and block an attacker’s access to the CAN bus at the hardware level.

White paper on CAN security

All these CAN security issues are covered in detail in the Canis Labs white paper on CAN security (PDF).
